Three reasons why you should work remotely with your flatpanel
Safety
Working at distance keeps you further away from the X-ray generator and so reduces the exposure to radiation
Ergonomy
Working with a stand or DR-Cowboybox reduces lifting and relieves back and shoulders
Efficiency
A stand reduces the need for one pair of hands and stabilizes your flat panel for sharp images
Demonstration

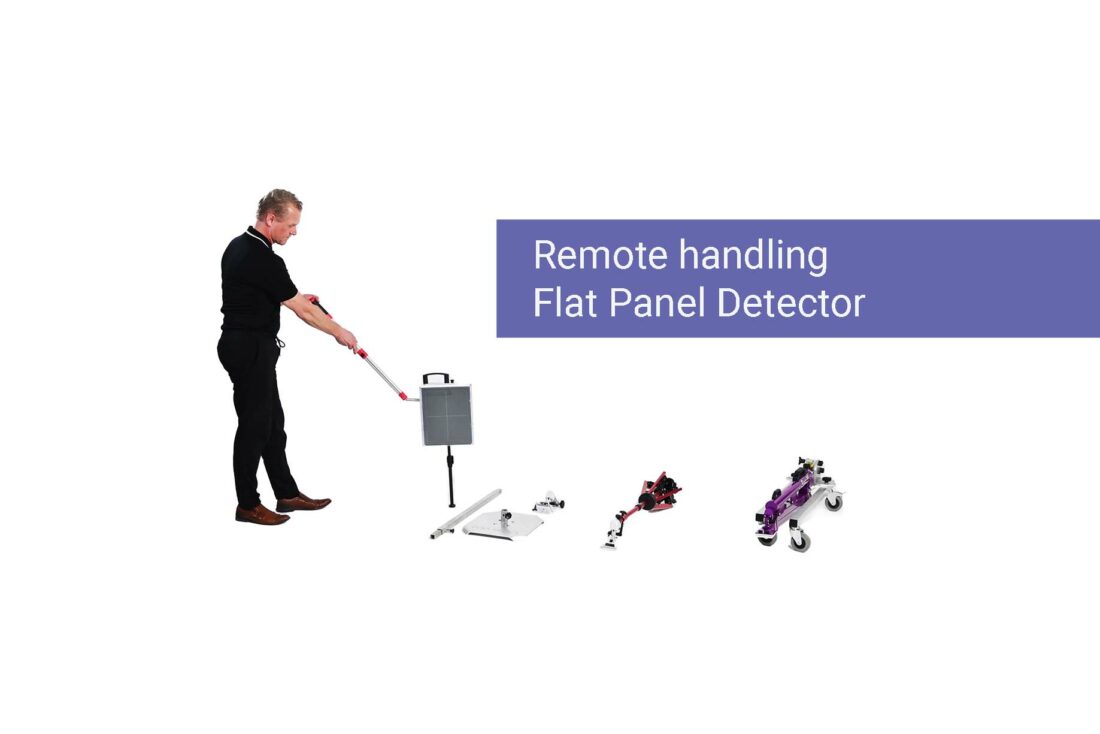

Watch the video to see a demonstration of the remote control possibilities of your Flat Panel Detector.
All stand options are
compatible with the

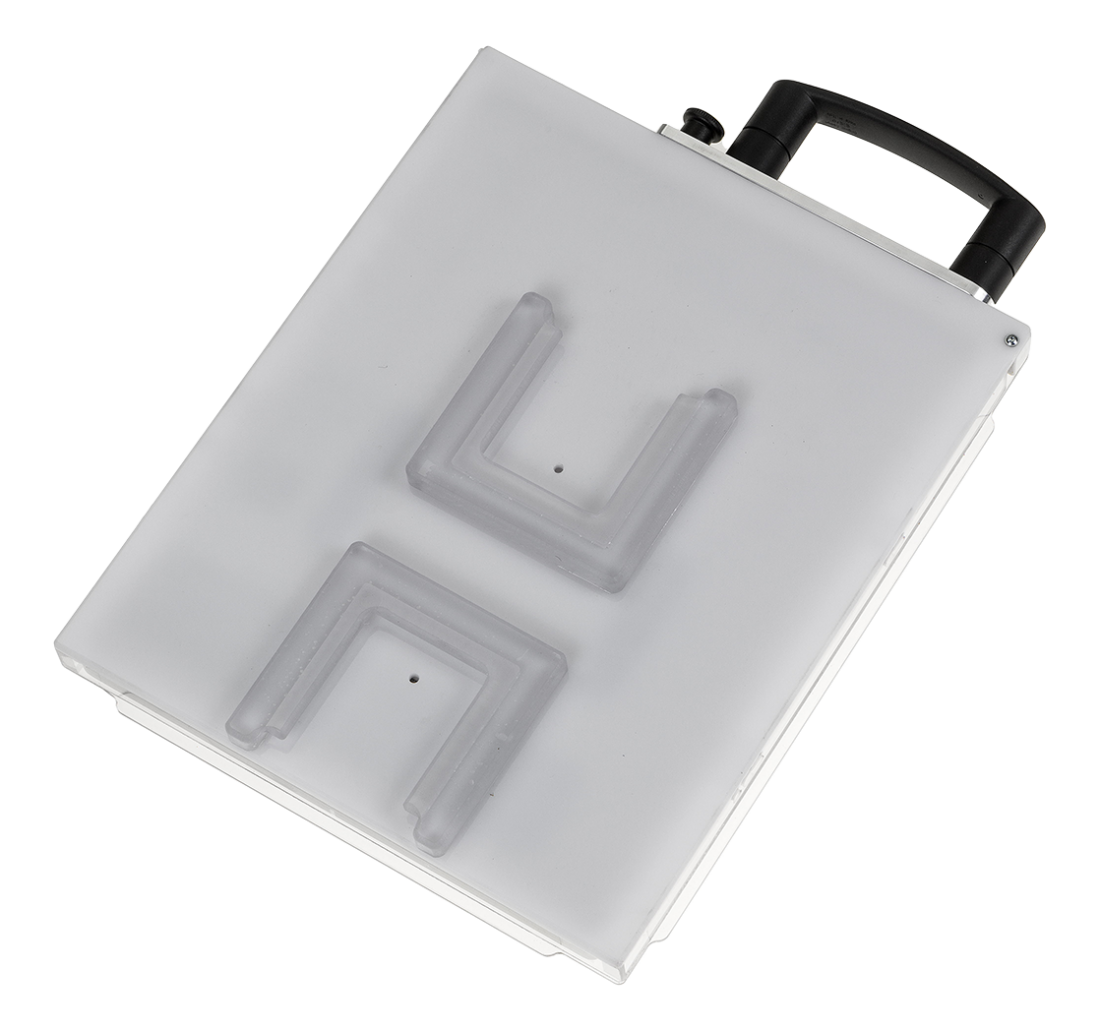

DR-Buckybox or DR-Cowboybox
Compare
| Denfinity with 3D joint | DR-Cowboybox | Bucky Lite | Stat-X Bucky | |
|---|---|---|---|---|
| Maximum load | 0 – 10 kg | 0 – 10 kg | 0 – 7 kg | 4 – 15 kg |
| Weight | 6,7 kg | +/- 2,5 kg (depends on panel size) | 4,2 kg | 21 kg |
| Material | stainless steel | aluminium | aluminium | aluminium |
| Transport size | base 40×35 cm pole 96 cm | Stick L 70 cm | L94 x W23 x H23 cm | L110 x W30 x H32 cm |
| Max height bracket | 175 cm | 49 cm | 175 cm | 185 cm |
| Height adjustment | 96 – 175 cm | 28 – 49 cm | 90-175 cm | 0 -185 cm |
| Height adjustment | staged | stageless | stageless | stageless |
| (Swing)arm Length | – | 92 cm | – | 75 cm |
| Upgrades | Headrest LM-Head support | Support Foot long DR Cowboybox package | – | Swingarm Espléndido Swingarm Vaquero |
| Price | € 1000,- | from € 740,- | € 1.025,- | € 3.750,- |
-
DenfinityFrom €865 -
DR-Cowboybox€1.025,00 -
Bucky Lite€1.235,00 -
Stat-X Bucky€4.955,00 – €5.295,00
