Head Stand
From €875

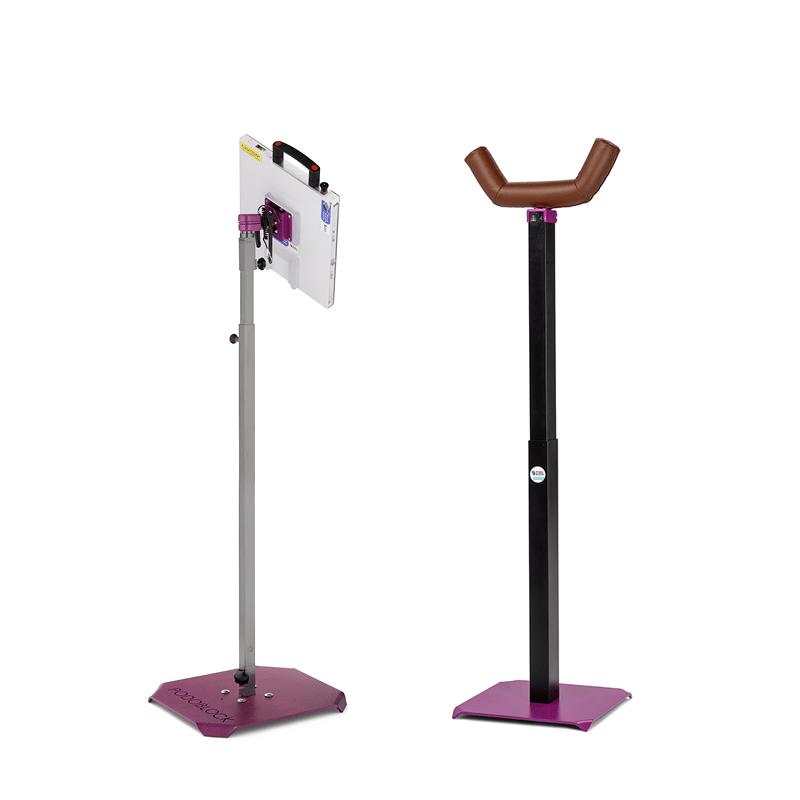

The Head Stand is a modular positioning system designed for equine skull, head, neck and back radiography.
Lightweight and stable, it allows effortless height adjustment and precise positioning for every examination.

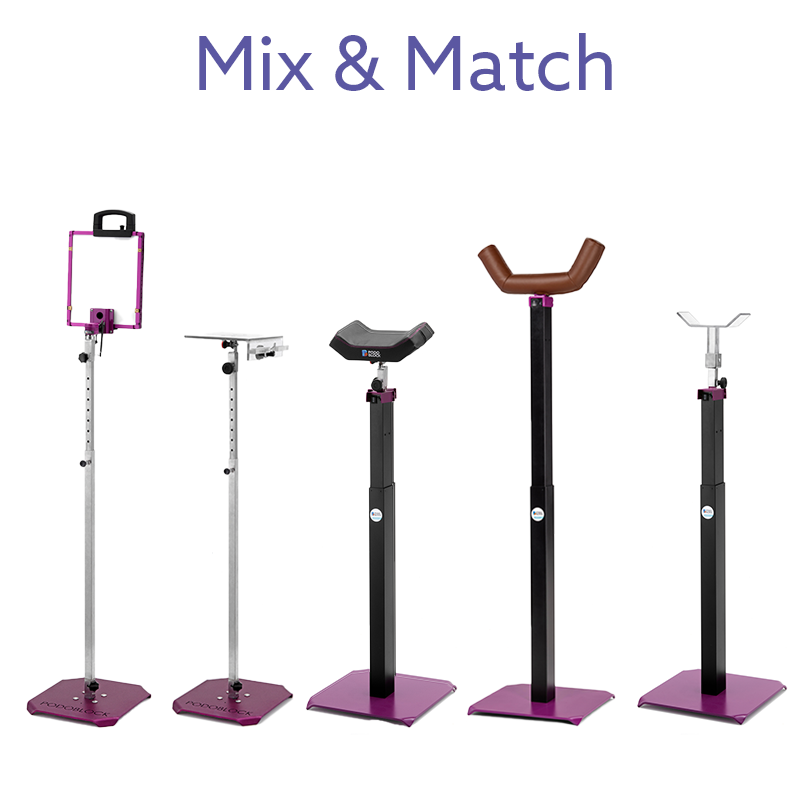

Start with your preferred Base Element, then select one of five compatible Head Units to complete your setup.
Base Elements
-
Base Element Short – ideal for ponies or low-angle positioning and mobile use.
-
Base Element Long – the standard version for most equine skull and neck X-rays, compact and ideal for mobile use.
-

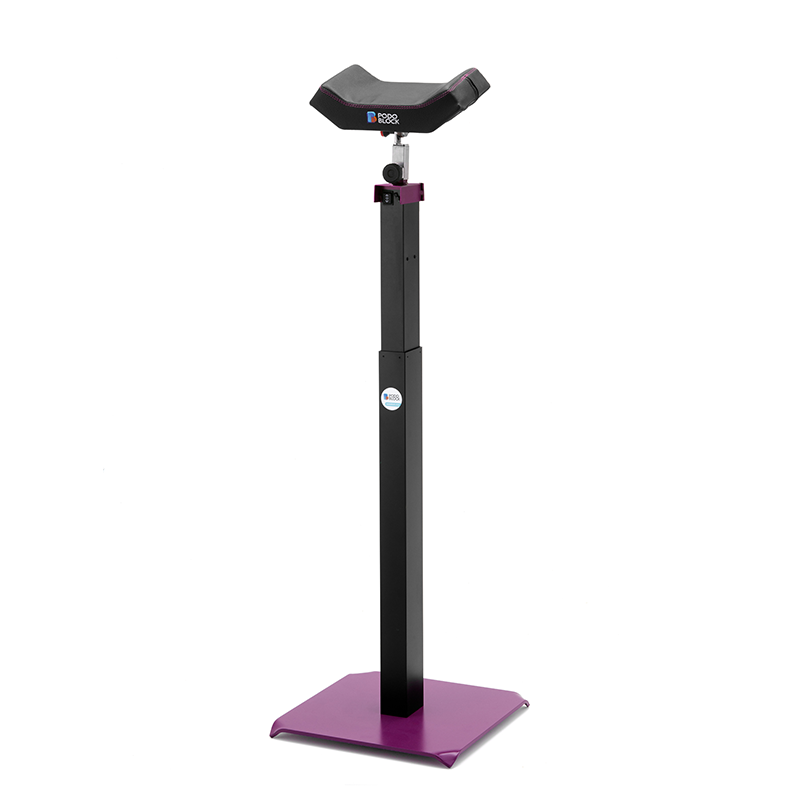

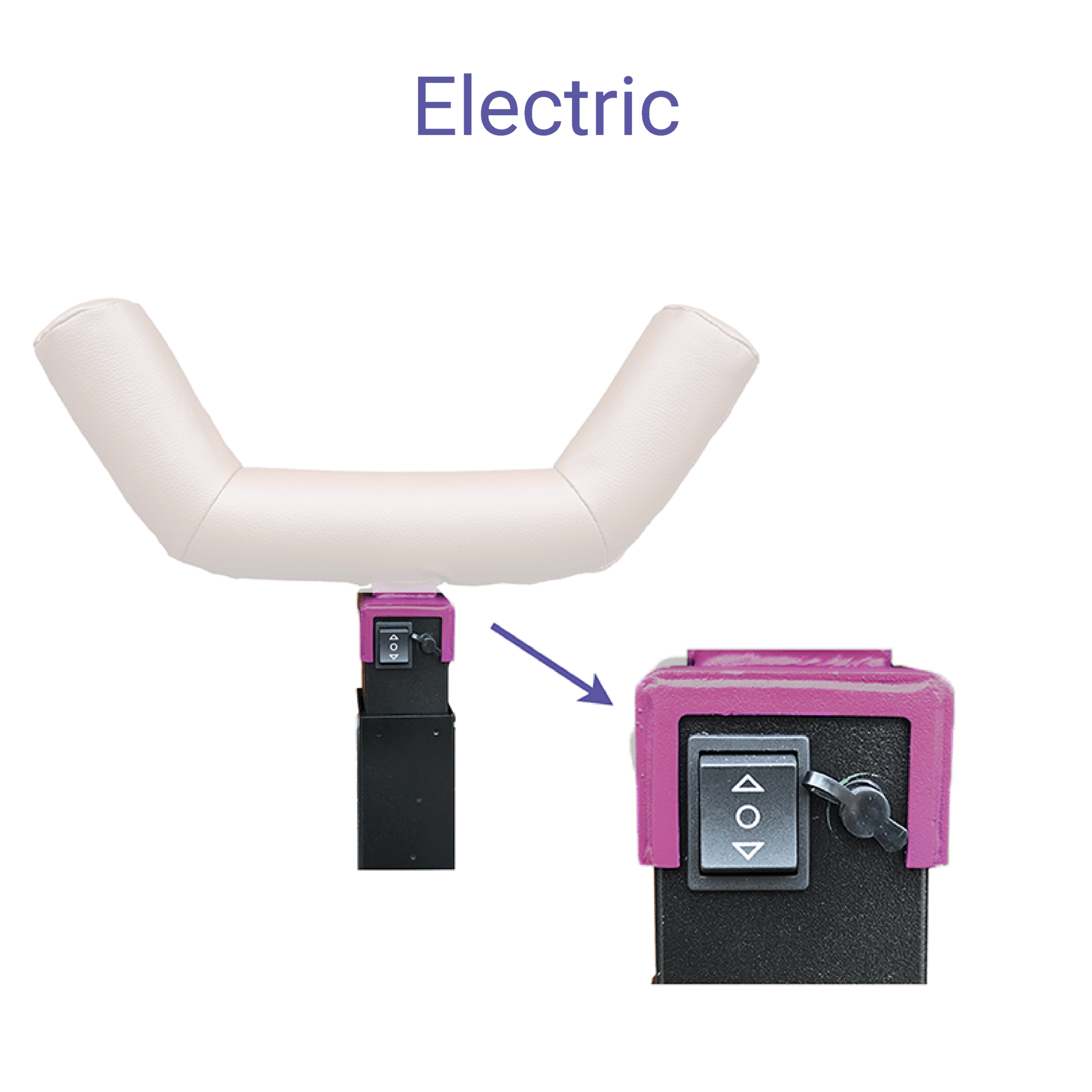

Base Element Electric – battery-powered base with smooth electrical lift. Perfect for clinical environments where stability and comfort are key. Especially useful when working with sedated horses, as the head can be repositioned effortlessy without manual lifting.
Head Units
Interchangeable heads make the system adaptable for any diagnostic or anatomical region.

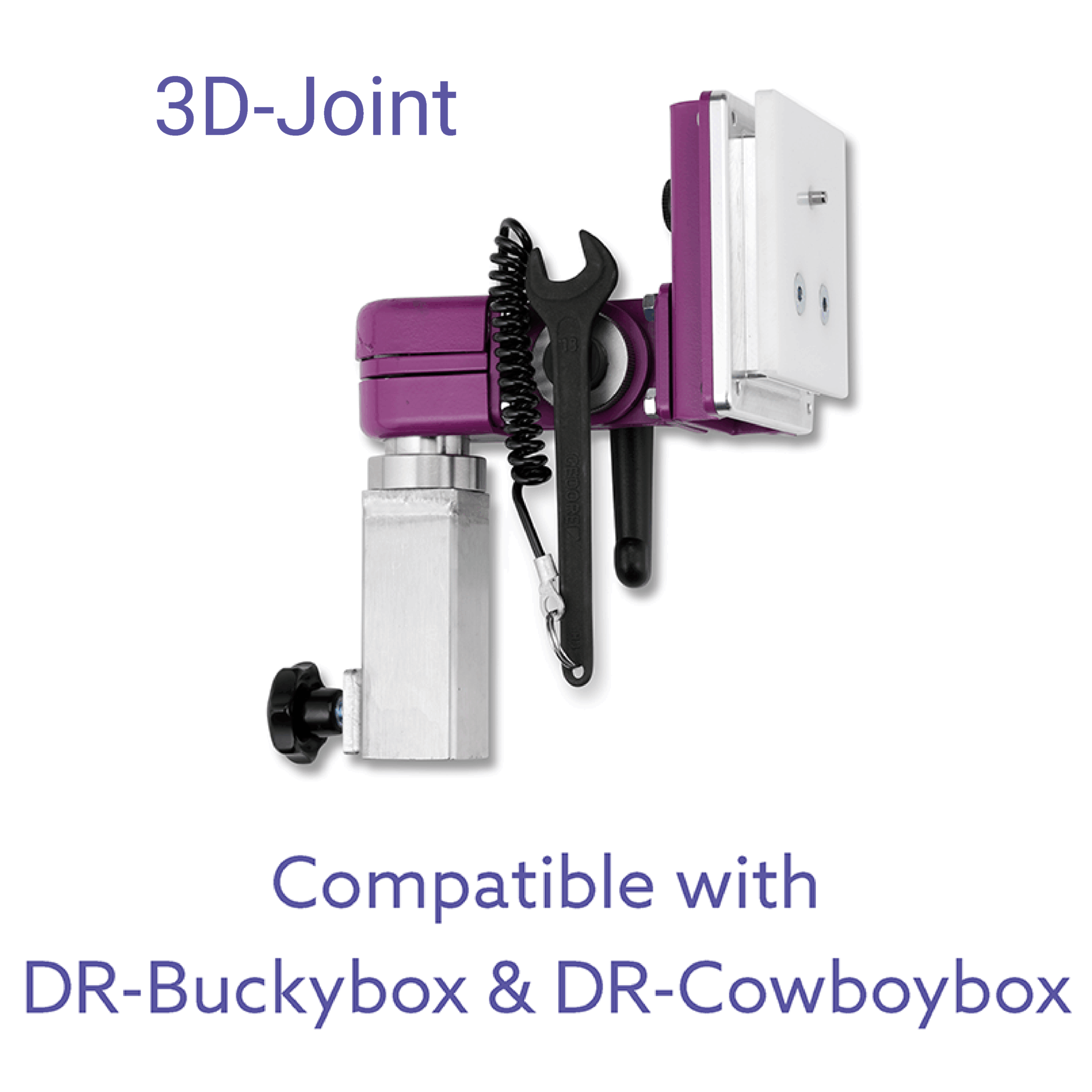

- 3D-Joint – DR-Buckybox / DR-Cowboybox
Universal aluminium 3D joint for skull, neck and back radiographs. Compatible with our DR-Buckybox and DR-Cowboybox. - 3D-Joint – DR-Quadro

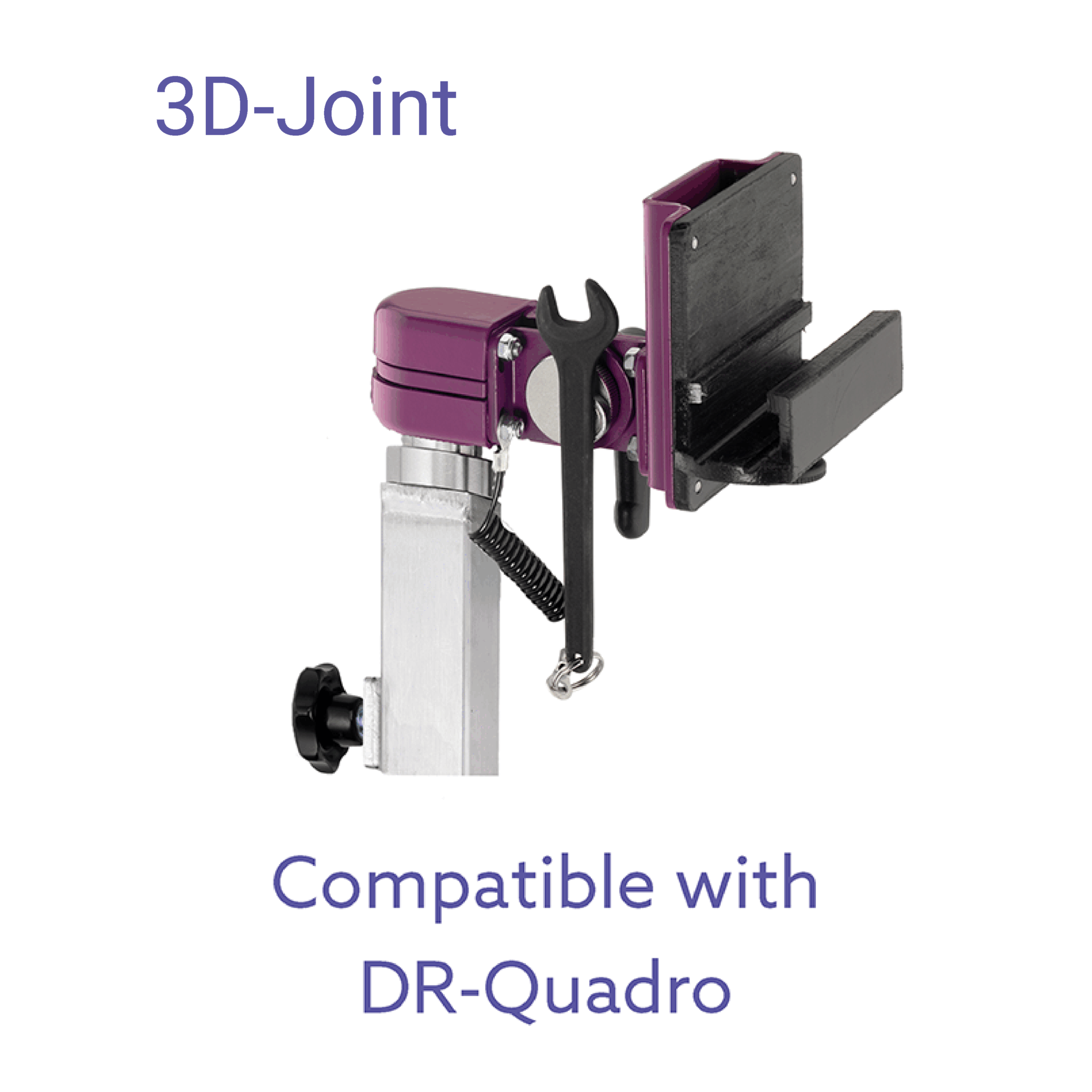

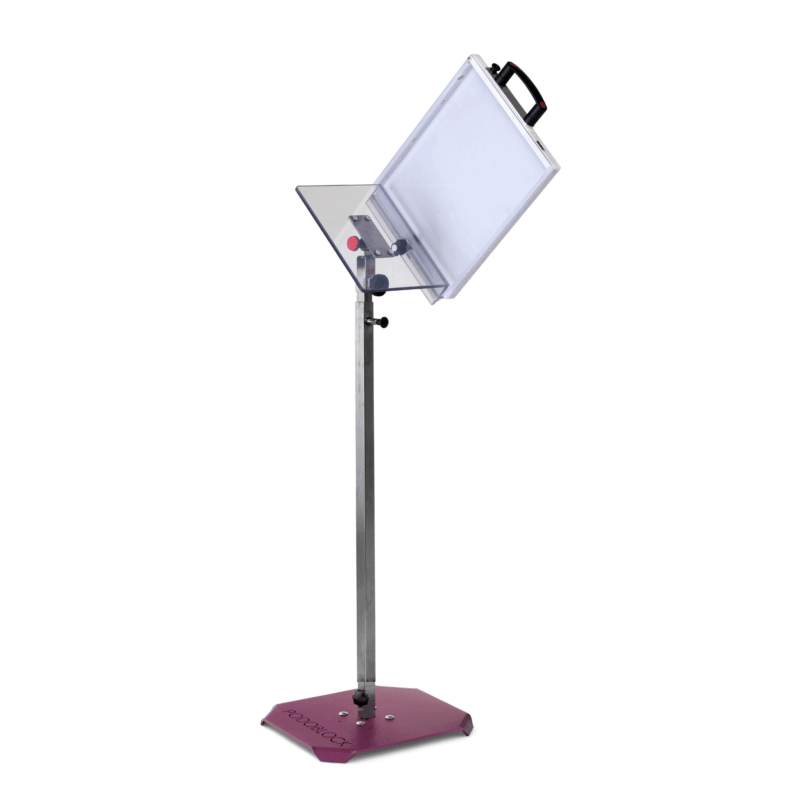

Special version of the universal 3D joint designed for the DR-Quadro frame. - LM-Head Support

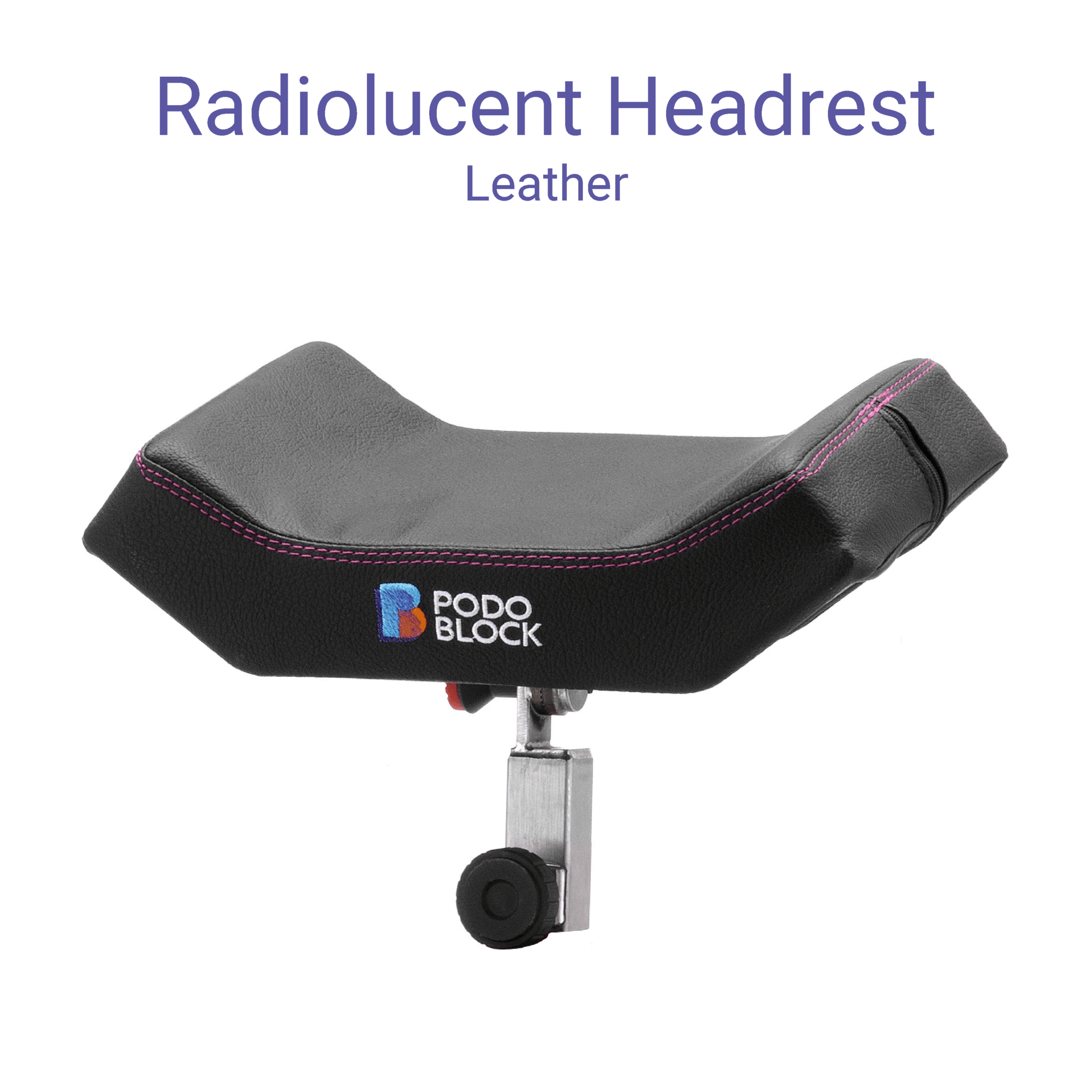

Polycarbonate support plate that integrates with the Protectionbox, Podo-Protectionbox, DR-Buckybox, DR-Cowboybox and DR-Quadro. - Headrest – Leather Cover

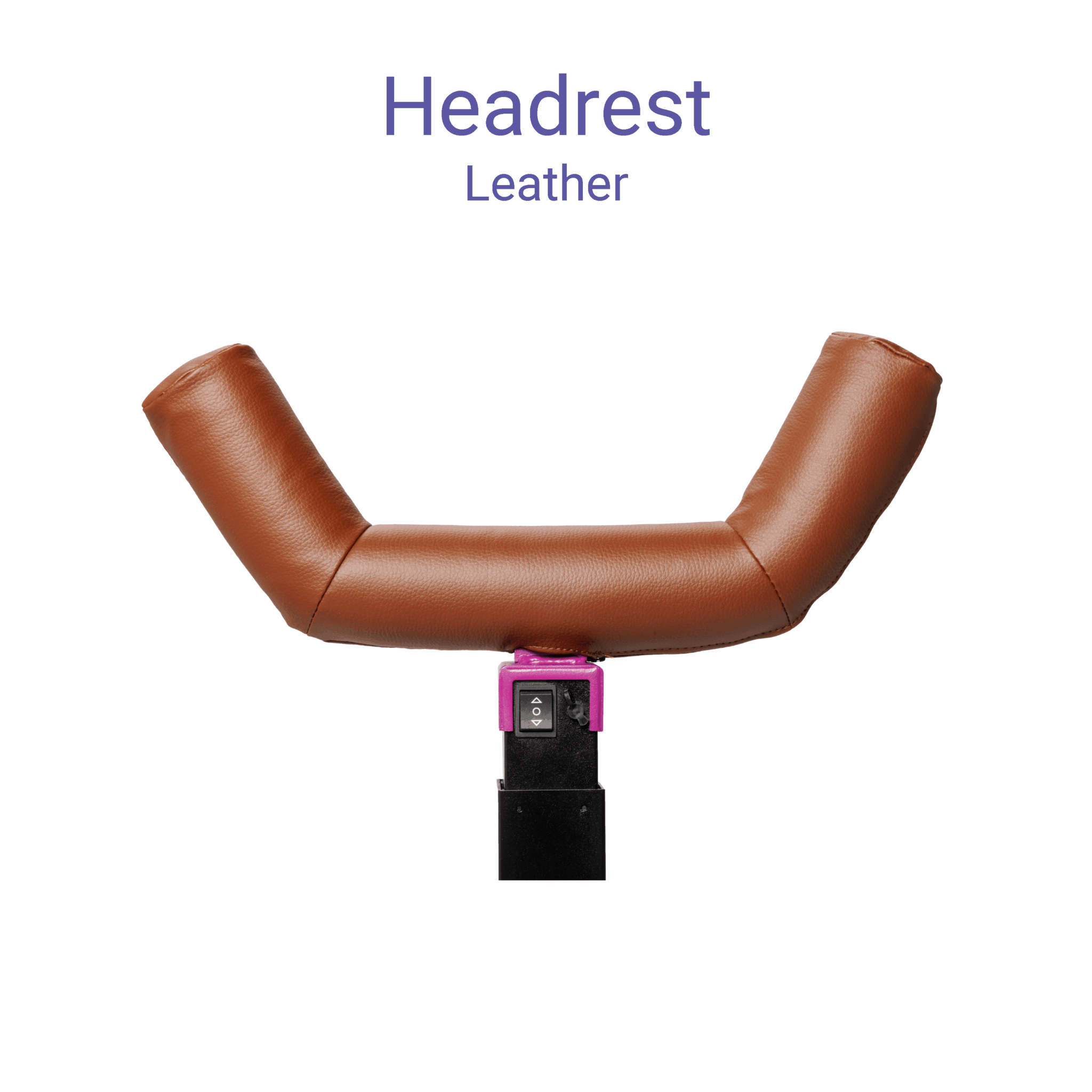

Comfortable and durable synthetic leather headrest. Ideal for general examinations. - Radiolucent Headrest – Polycarbonate

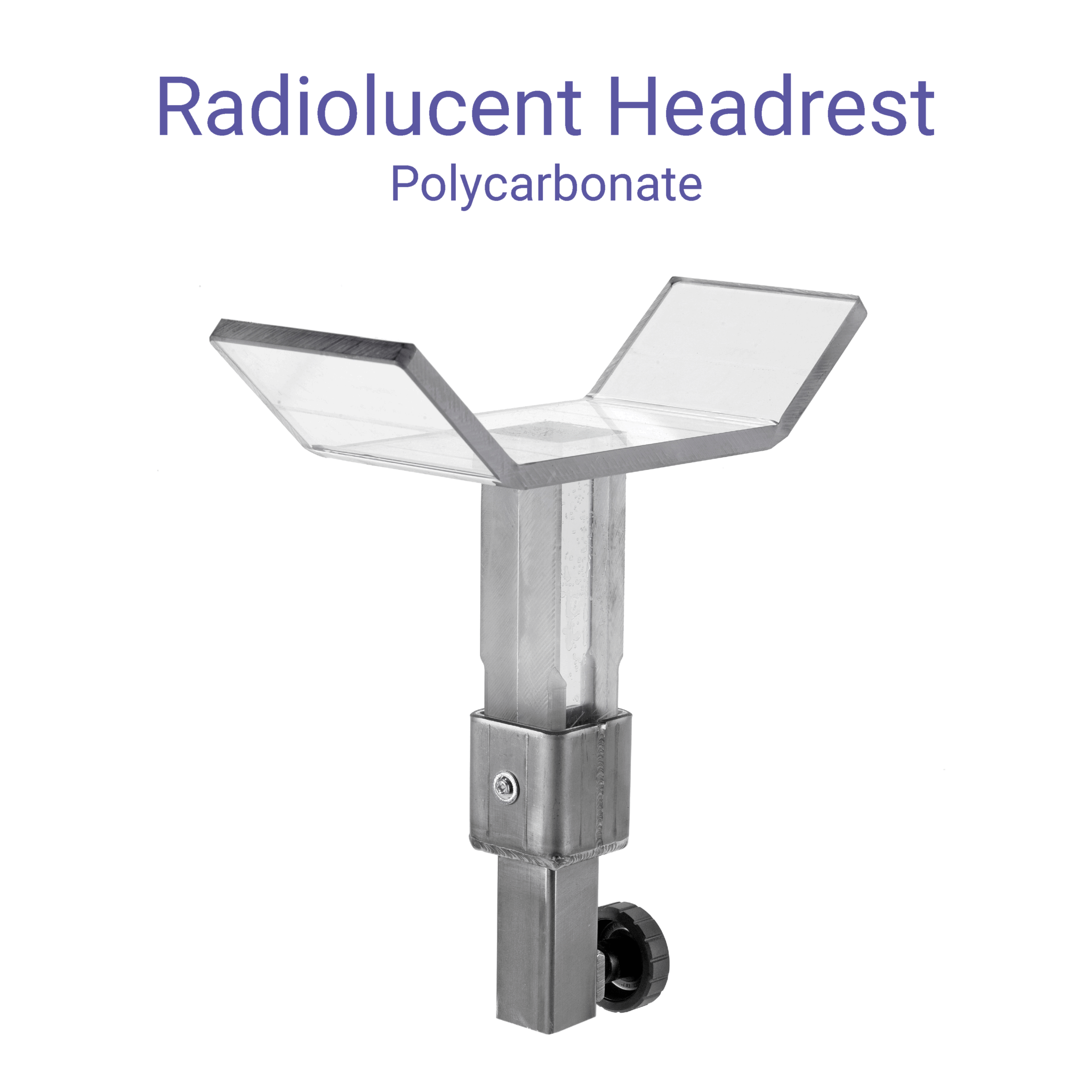

A polycarbonate headrest for full radiolucency, perfect for precise X-rays without artefacts.
Trusted by more then 3500+ professionals and counting
Pay safe and secure with:
Description
Specifications
| Component | Material | Dimensions / Range | Weight | Notes |
|---|---|---|---|---|
| Base Element Short | Stainless steel | Base plate 350 × 405 × 90 mm Vertical pole 960 mm Travel ≈ 600 mm |
9 kg | Ideal for ponies or low-angle positioning Lightweight and portable |
| Base Element Long | Stainless steel | Base plate 350 × 405 × 90 mm Vertical pole 960 mm Travel ≈ 600 mm |
10 kg | Standard version for most skull and neck X-rays Perfect for mobile use |
| Base Element Electric | Aluminium | Baseplate 45 × 45 cm Electrical lift 102 – 165 cm (stageless) |
11 kg | Ideal for clinical environments Effortless repositioning of sedated horses without manual lifting |
| 3D-Joint – DR-Buckybox / DR-Cowboybox | Aluminium | Universal swivel joint | – | For skull, neck and back radiographs Compatible with DR-Buckybox & DR-Cowboybox |
| 3D-Joint – DR-Quadro | Aluminium | Universal swivel joint | – | Optimised for DR-Quadro frame |
| LM-Head Support | Polycarbonate (10 mm) | Swivel range 180° | – | Compatible with Protectionbox, Podo-Protectionbox, DR-Buckybox, DR-Cowboybox, DR-Quadro |
| Headrest – Leather Cover | Aluminium core + synthetic-leather cushion | Standard comfort headrest | – | Ideal for general examinations |
| Radiolucent Headrest – Polycarbonate | Polycarbonate (10 mm) | Fully radiolucent | – | For precise X-rays without artefacts |
Additional information
| Podoblock | Equine |
|---|---|
| Examination | X-ray, Dental |
| Product type | Ergonomics, Flatpanel remote handling |
| X-ray System | DR (Digital), CR (Computed/Analog) |
